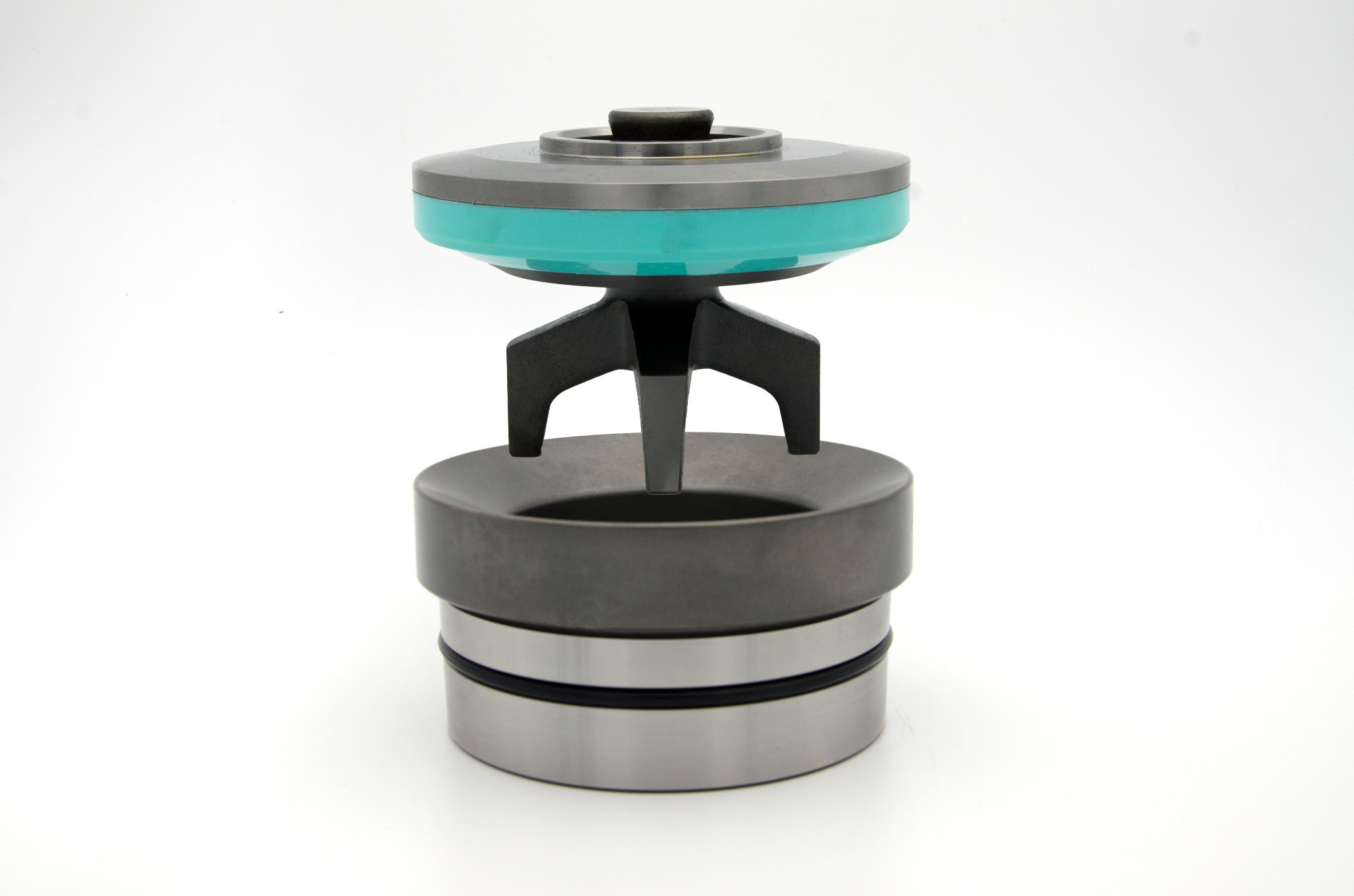

Frac Valve and Seat

Product Feathers：
Full-Channel Design: The fracturing valve and seat adopt a full-channel structure, accommodating various pressures, flow rates, fluid types, and high sand-to-liquid ratio fracturing conditions.

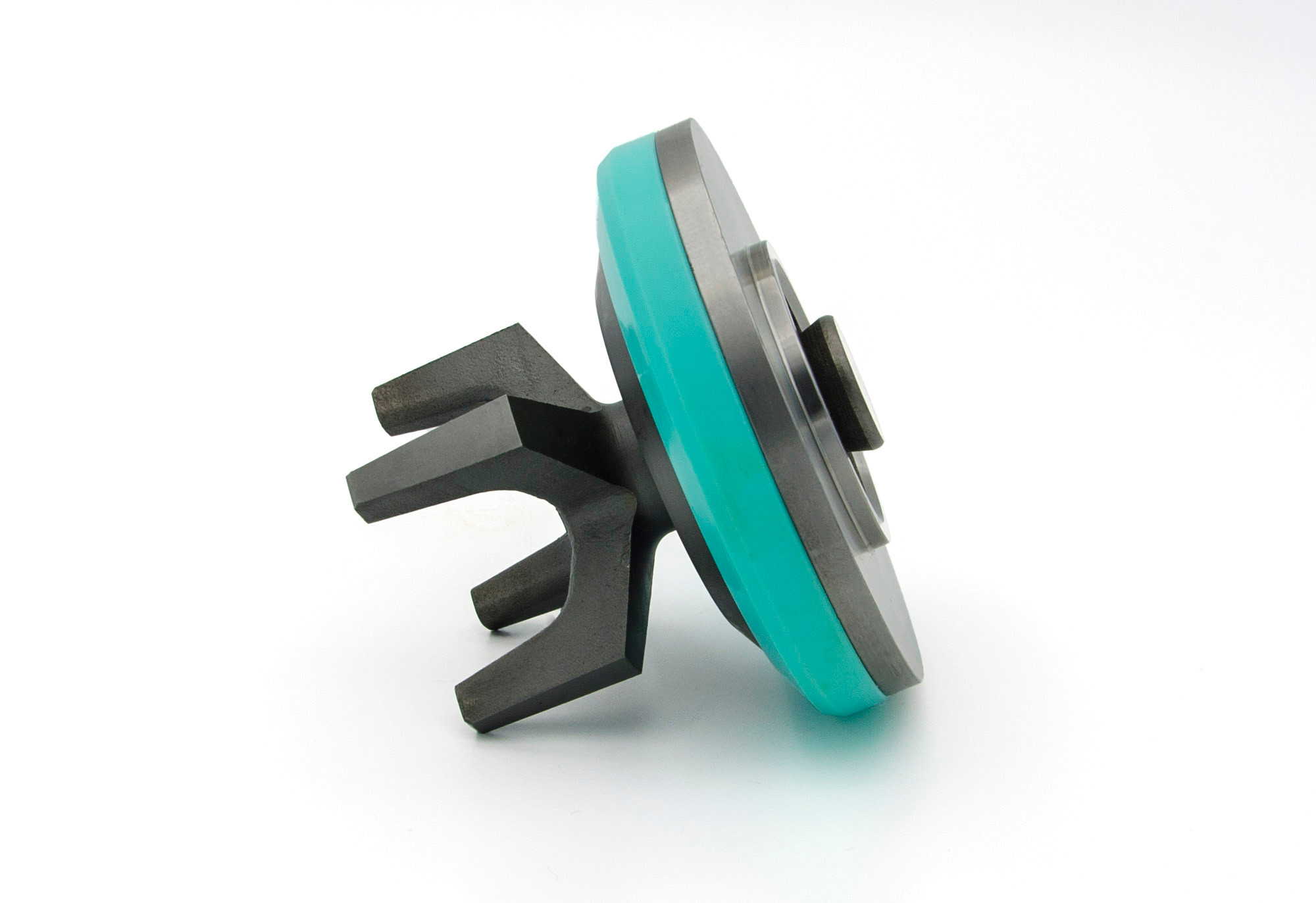

High-strength forged valve: The integrally forged valve body features a reinforced contact cone surface for exceptional impact and wear resistance.
Durable valve insert: Molded from high-performance TPU material, the valve insert provides excellent sealing and durability. Formulations can be customized for specific fracturing fluids and proppant requirements.

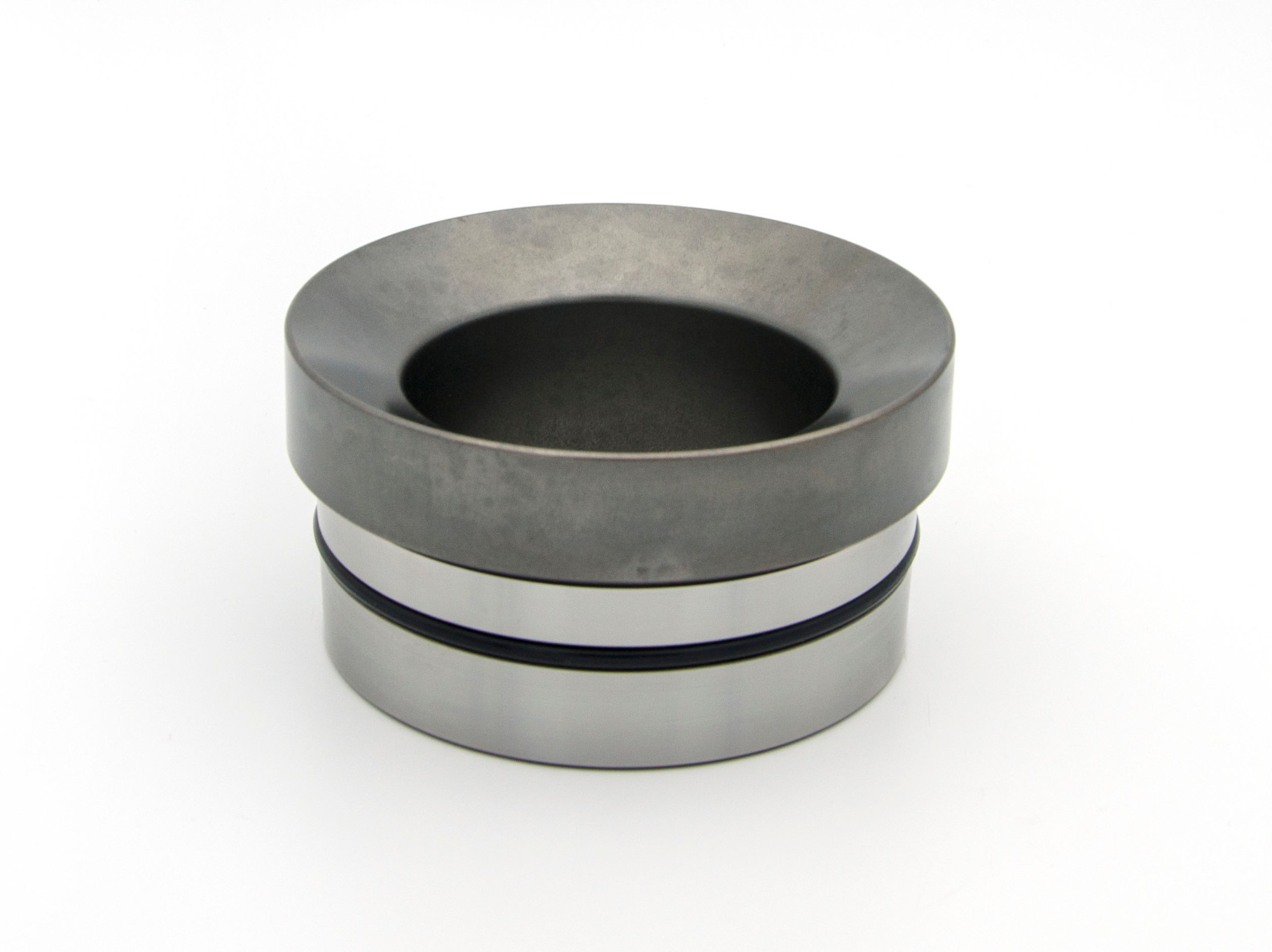

Advanced Alloy Steel Valve Seat: Forged from premium alloy steel, the valve seat undergoes advanced heat treatment to achieve a hard contact cone surface for wear resistance, and a tough core to prevent fractures under high pump pressures.
Broad Operating Range: Engineered to handle pressures pressures up to 140 MPa and function reliably in temperatures ranging from -40°C to +100°C.
Proven Global Application:: Widely used in conventional and unconventional fracturing operations worldwide, the valve and seat outperform comparable products and are interchangeable with most major fracturing pump brands.

Specifications:
